Product Overview

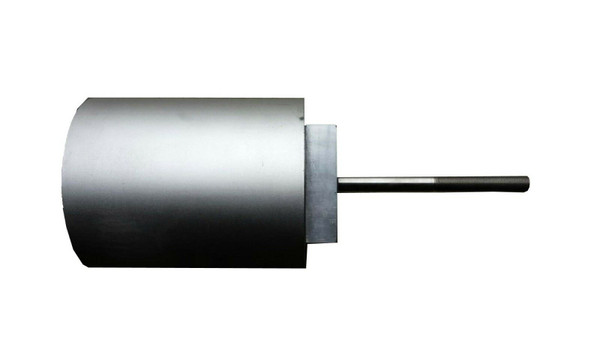

6" Tailgate Air Cylinder (Haldex Style R3PT75)
The tailgate air cylinder is designed to allow remote cab opening and closing of the tailgate locking mechanism on a dump body.
Replaces: Haldex R3PT75
Features:
303 service stainless steel cylinder shafts provide
excellent corrosion resistanceand extended cycle life, 5/8"-18 thread
Lightweight, corrosion resistant aluminum cylinder tube with die cast aluminum end caps.
Rear clevis cast as integral part of the rear cover for improved durability and mounting integrity.
Double acting, Emralon-coated piston cup assures smooth long lasting operation even in cold weather conditions (to - 40°)
Front end cap assembly includes pressure seal,
dirt seal and oil impregnated bronze bushing
All cylinders are factory pressure and leak tested prior to shipping
Air Cylinder Specifications
Diameter: 6"
Stroke: 3"
Retracted Length: 16.18"
Extended Length: 19.18"
Thrust @ 100 psi: 400 lbs.
Draw @ 100 psi: 2400 lbs.
Cylinder Type: Spring Return
